JACKS AND PLUGS

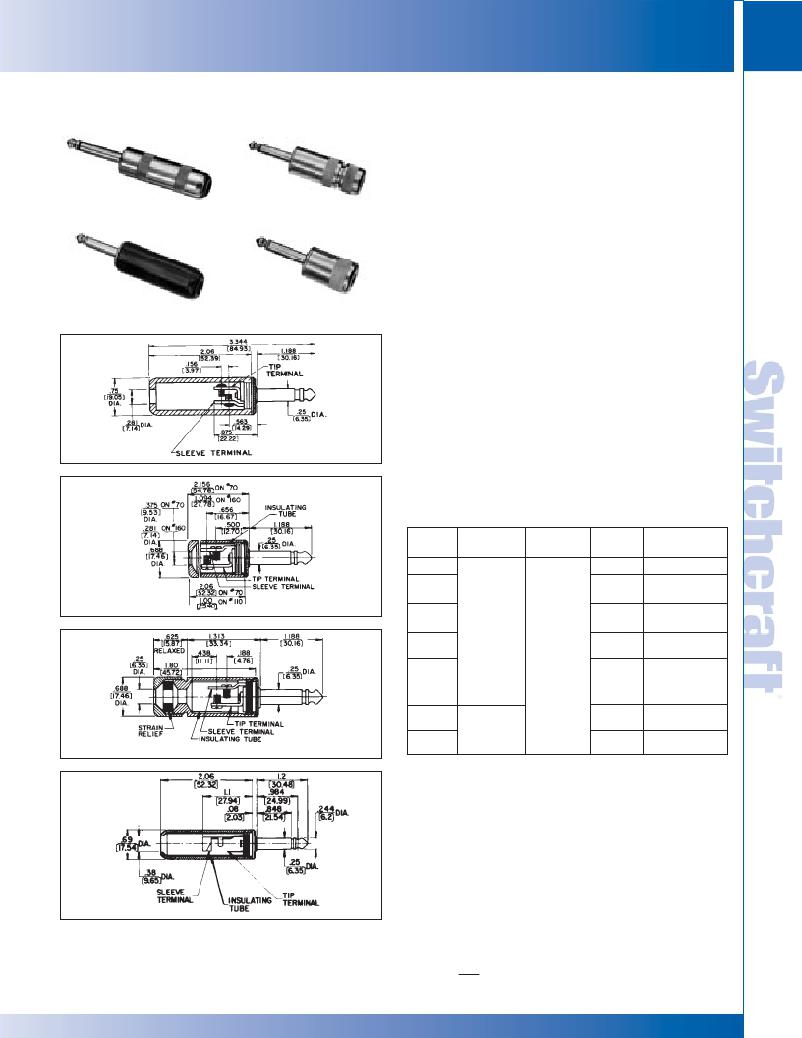

FAX: 773 792-2129 1/4" COMMERCIAL PHONE PLUGS
* Please visit the product pages on our website for the most up-to-date product information
1/4" COMMERCIAL PHONE PLUGS (continued)
2-CONDUCTOR/PLASTIC OR
SHIELDED HANDLES
Popular general purpose plug fits all standard jacks. Available
in both 2- and 3-conductor types. Two-conductor plugs
available with black or red molded plastic, or 3 different
147
Numbers 70, 184
Number 40
Number 40
Number 170, 181
Number 160
lengths of brass nickel-plated (shielded) handles. 2-Conductor
Special Military Plugs are also available.
FEATURES
? 1-piece tip rod staked into tip terminal insures tightness
of plug.
? All essential conducting members are brass with external
parts nickel-plated.
? Terminal screws: broad-headed. In production quantities,
screws may be eliminated and terminals hot-tinned for
easier soldering of wire leads to terminals (special order).
? Screw terminals have grooves which accommodate
1 or 2 cord tips.
? Thermoplastic handle insert for greater insulation.
? Plugs accept up to .25" maximum diameter cable
(parallel or shielded cable).
SPECIFICATIONS
Sleeve, Tip and Body: Nickel-plated copper alloy.
Terminals: Solder lug: copper alloy, electro-tinned.
Screw: steel, tin-plated.
Handles: Shielded: Nickel-plated copper alloy.
Molded: black or red plastic.
Part
Typical
Handle Part
Number
40
Terminals
Mating Jack 2
Handle
Black
Number
M1001
Number 160
70 3
160
Screw
(Replacement
Screw Part No.
P10013)
Shielded
Shielded
Handle: T10141
Insulator: A10063
Handle: T10451
Insulator: A10061
? 2P1251
170 1
182QB
182QBD
184 3
2 required
Solder Lug &
11 or
Z15J
Without
Handle
Shielded
Shielded
_
Handle: T11231 1
Insulator: A10064
Handle: T10141
Insulator: A11372
Number 170
184L 4
Cable Clamp
Shielded
T2322
1. 2-piece shielded handle with built-in cable clamp for .25" diameter cable.
Handles: Number T11231, handle; Number T11241, cap; see above for
insulating tube; Number T1125, rubber washer.
2. Other mating plugs are available.
3. Handle has .380" (9.65mm) diameter hole to accommodate
.375" diameter cable.
4. Handle has .451" (11.51mm) diameter hole to accommodate
larger diameter cables.
Number 184
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
